PiRLP
Modified Version 3.0 Board

All the mods completed for you

IRLP - Keeping the Radio in Amateur Radio

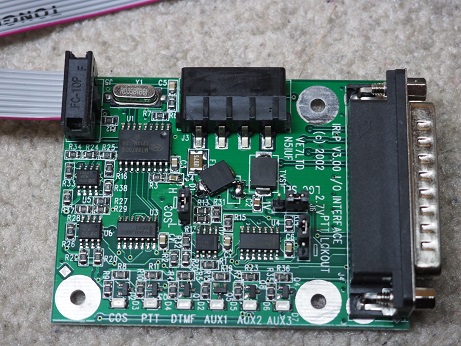

The PiRLP modified version 3.0 board is pre-modified for use with a Raspberry Pi. The mods include:

  • 5V system disabled by breaking the connection of diode D1. (Remove D1 diode)
  • 3.3V from the Raspberry Pi routed to the V+ rail of the IRLP board.

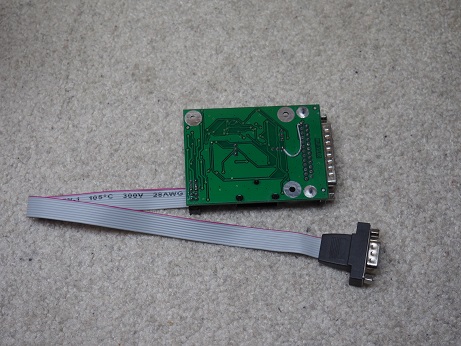

  • AUX1 and PTT bridged on the bottom of the IDC-10 header.
