TECHNICAL DETAILS

• IRLP v3.0 board mounted and pre-wired

• 1.0 GHz Fanless Mini-ITX board with customized BIOS firmware

• 512 Meg of Ram

• 256 Meg Commercial IDE Flash Drive (not compact flash)

• Compact case (uses one small and quiet 12V fan)
  - 8.25" x 2.6" x 10.8" or 210mm x 65mm x 275mm
  - About same size as a ream of 8.5" x 11" paper

FEATURES

• PHP Enabled webserver
  - Runs IRLP WEB ADMIN system
  - Easy to add on additional PHP scripts to enhance system

• No hard drive
  - Boots from flash device
  - Runs quickly in RAM drive
  - OS not succeptable to power fluctuations
  - Flash card is easily updatable
  - Reduced noise
  - Reduced power consumption

• Linux pre-installed
  - Node number already assigned and tested (new or existing)
  - All hardware already pre-configured

• RS232 serial port and minicom installed
  - Allows direct interface to controller at repeater site
  - Serial port can also be used as a serial console (no monitor required)

• All wiring internal to case
  - No external parallel port cable
  - No external audio jack wiring
  - All interfacing to radio through a single DB-9 connector

• 12.0 volt operation (multi voltage AC adapter included**)
  - Good for low power consumtion - 14 watts average usage
  - Single power supply for radio/repeater and node computer
  ** Note that supply must be less than 12.5V average
  ** Special multivoltage power supply option required for higher voltage (13.8V)

• Common used IRLP scripts and features already installed:
  - EchoIRLP
  - IRLP Controller
  - IRLP Web Admin
  - Saytime/date scripts
  - Star69
  - Automated CW ID

• Simple configuration script turns on/off certain features easily

PRICING

• Complete unit: wired, built, and tested $699 US

• Pricing Options:

  - 1RU 19" rack case (+ $150)
    - Only 8" deep, 1 rack unit high
    - Lightweight
    - Requires special power supply option (+ $75) if run greater than 12V

  - "Multivoltage DC Input" option (+ $75)
    - Allows any case to run from standard 13.8V power supply
    - Input voltage range from 6V to 24V DC
    - Perfect for being powered from a vehicle or at the repeater site
    - Includes 100-240VAC-to-12VDC converter -OR- 2m DC Power Cable

  ** Canadian orders are subject to GST/HST at their local rate.


SHIPPING

• Canada Post Shipping from Vancouver - Approx 10 lbs
  - ~7 Day Ground to USA or Canada - $35
  - ~7 Day Air to International - $130


• From Order to Delivery Time 1-4 weeks
  - Pieces ordered and built in Canada
  - Rush orders available upon request

HOW TO ORDER

• Download the order form by right clicking on this link, and saving the file.

• Fill out the order form and attach it to an email to sales@irlp.net.


Someone will prepare a quote based on your location and order, and arrange for payment.

Photos

- Picture 1, Front right profile w/o drive/board chassis

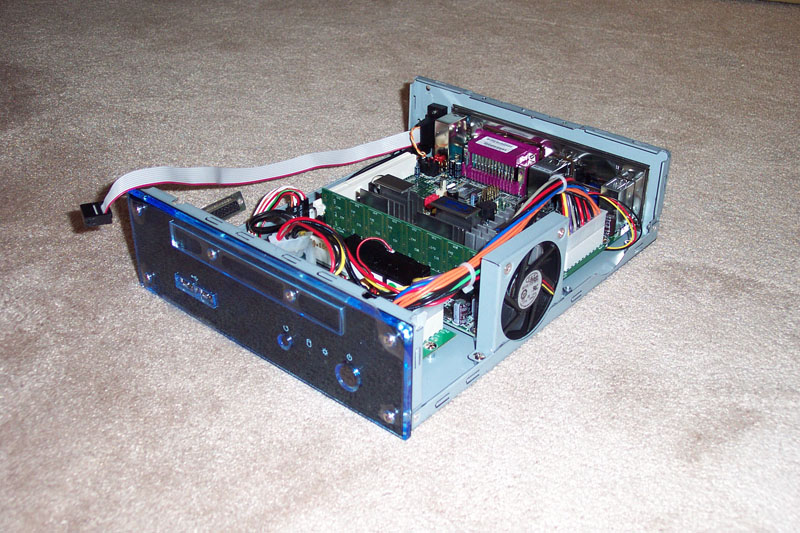

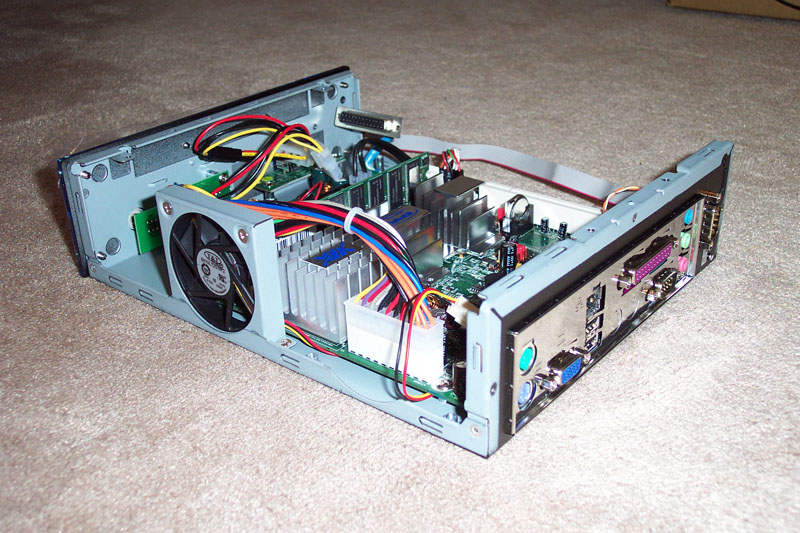

- Picture 2, Top w/o drive/board chassis, note IDE flash drive

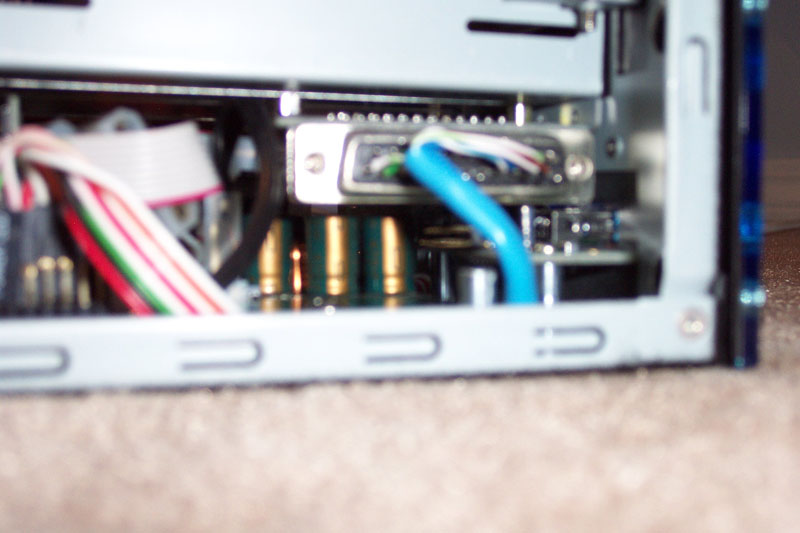

- Picture 3, Left side w/o drive/board chassis

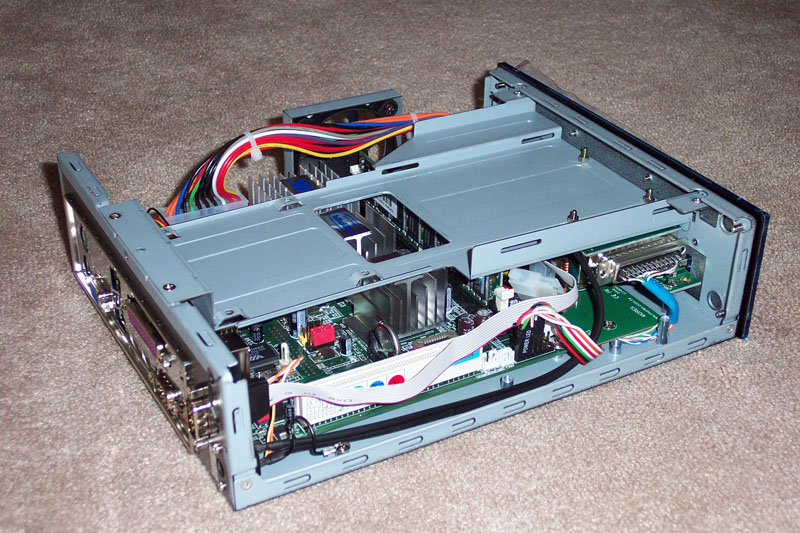

- Picture 4, Right side w/o drive/board chassis

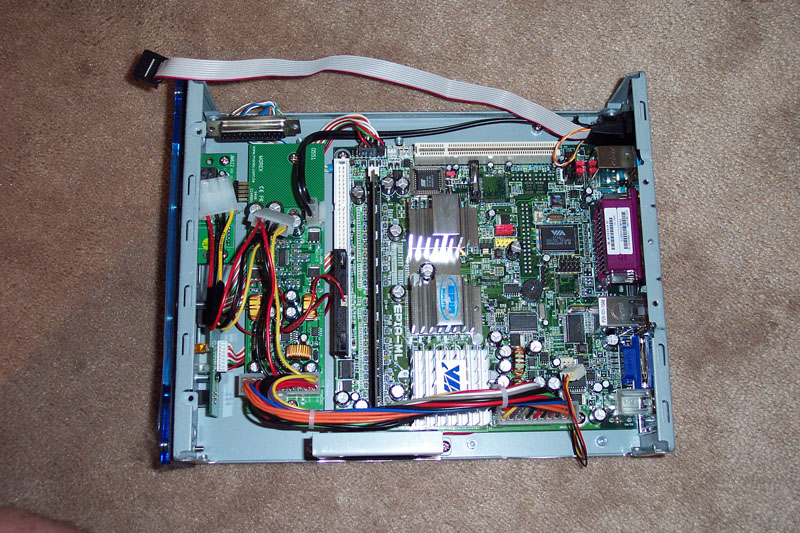

- Picture 5, IRLP Board closeup

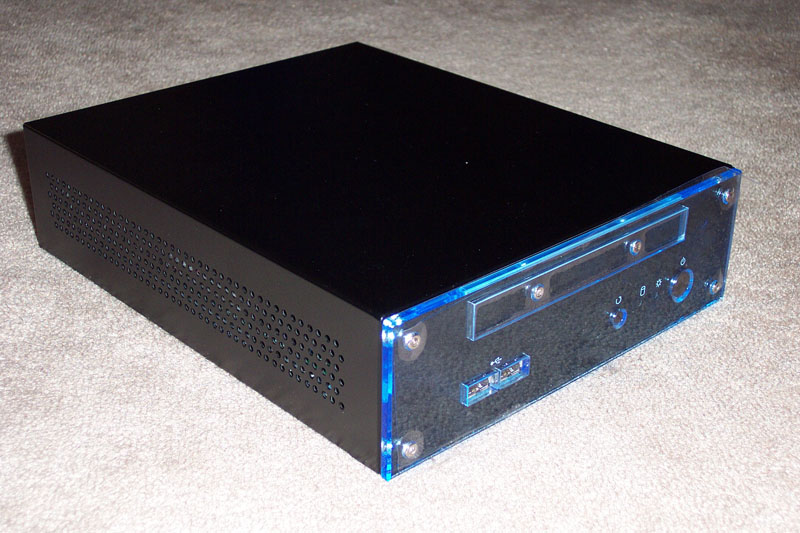

- Picture 6, Right profile, drive/board chassis installed

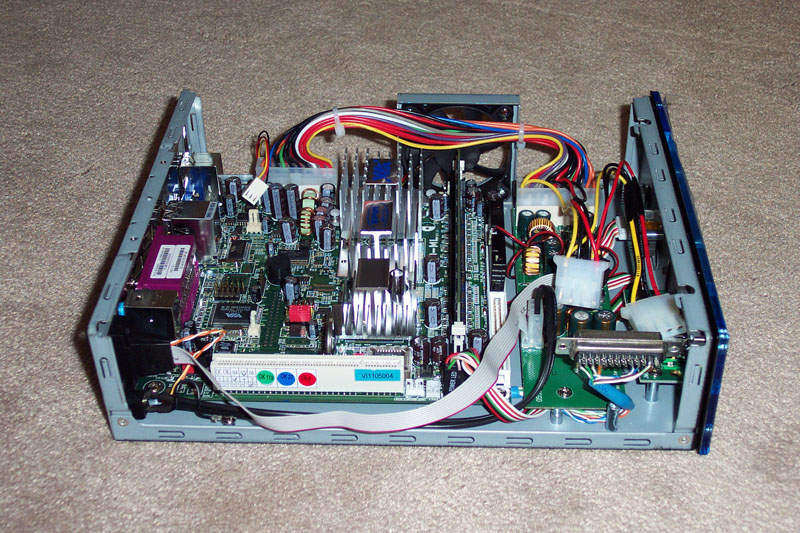

- Picture 7, Left profile assembled

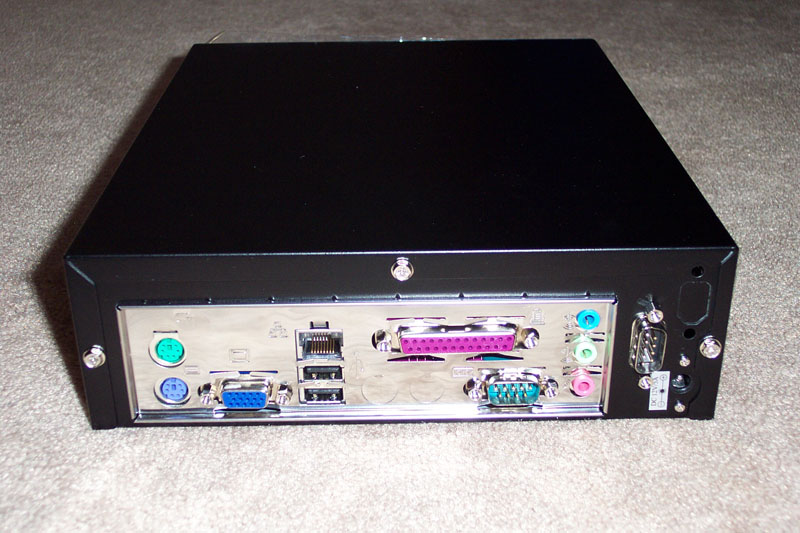

- Picture 8, Backside assembled

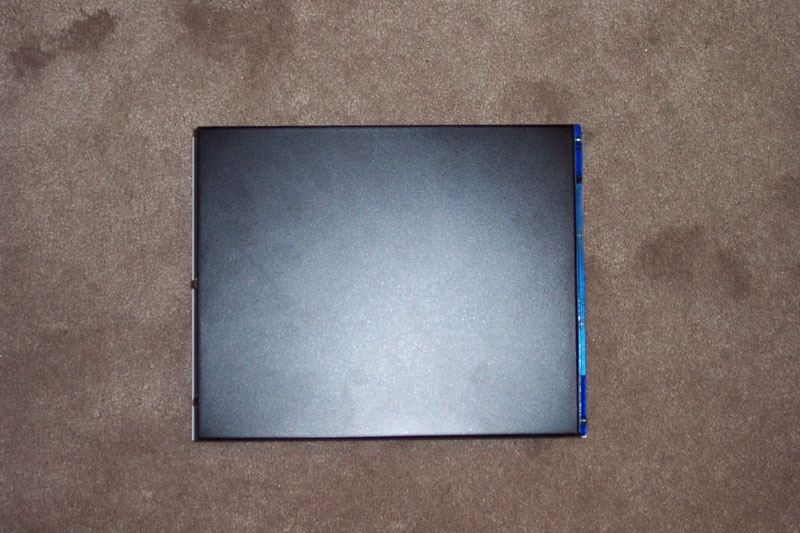

- Picture 9, Top assembled

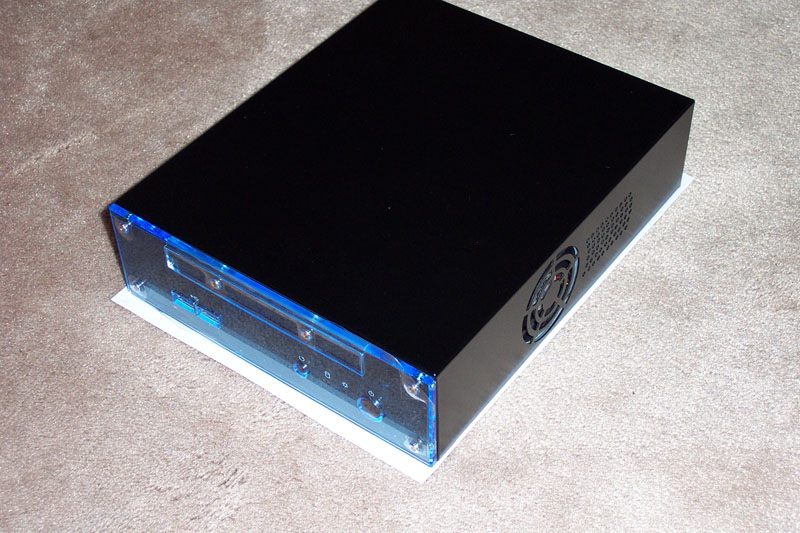

- Picture 10, Unit on top of piece of 8.5 x 11 paper!

Installation and Operation Document

Download the configuration and setup document here Embedded_Info.pdf. Also the irlp-embedded Yahoo group is a great source of information for new and experienced owners. Join up by clicking here.
